Editor for UML Deployment Diagrams
The editor for deployment diagrams is used for modeling the assignment of software components to hardware units and for displaying communication links and dependencies between the hardware units.
Purpose

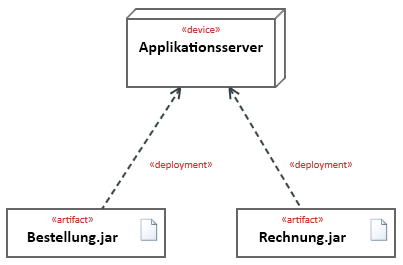

The deployment diagram can be used for modeling a physical structure of the modeled system. It typically displays computer nodes, components, artifacts, form specifications, connections and deployment relationships.
