Editor for UML Component and Package Diagrams

Purpose

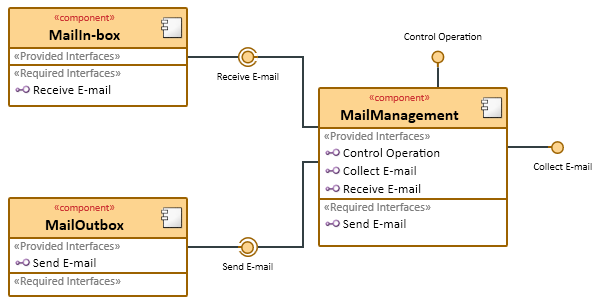

The UML component diagram can be used for modeling a certain view of the modeled system's structure. The display typically comprises components with their interfaces. The UML component diagram also shows how components are linked with each other using dependency relationships and connectors.
